How Much Space Do You Need for a Home Gym? Power Rack Ceiling Height & Footprint Guide

Quick answer: A full home gym with a power rack, barbell and bench needs a clear area of about 11 ft wide × 10 ft deep (roughly 110 sq ft) and a ceiling of at least 8 ft. Plan on 9 ft if you want to overhead press standing with full-size plates. A one-car garage or a large spare room is usually enough.

Key takeaways

• Width is set by the barbell, not the rack. An Olympic bar is 86.6" (7.2 ft) long, plus about 2 ft at each end for loading plates.
• Depth = rack depth + working space. About 5–5.5 ft for the rack plus 4–5 ft in front for deadlifts, rows and cable work.
• Ceiling height: at least 10–12" above the top of the rack. For standing overhead presses, estimate your height × 1.33 + 9".
• Flooring: cover the whole lifting zone, not just the spot under the rack.

How much floor space does a home gym need?

Use these zones as a starting point:

Setup	Recommended clear area	Notes
Mat-only workouts (yoga, HIIT, bodyweight)	6 × 6 ft to 6 × 8 ft	Enough to lie down and stretch your arms out in every direction
Bench + dumbbells	7 × 8 ft	Leave room to set dumbbells down on each side of the bench
Power rack + barbell + bench	About 11 × 10 ft	Width set by the 7.2 ft bar plus loading room
Power rack + bench + one machine	About 12 × 14 ft	For example, add a leg extension/curl machine (4.84 sq ft)

Why the barbell decides your width

An Olympic barbell like the GXMMAT Olympic bar is 86.6" long, which is wider than most racks. You need to stand at the end of each sleeve to slide plates on and off, so leave about 24" on each side: 86.6" + 48" ≈ 135", or roughly 11 ft.

Depth: rack plus working room

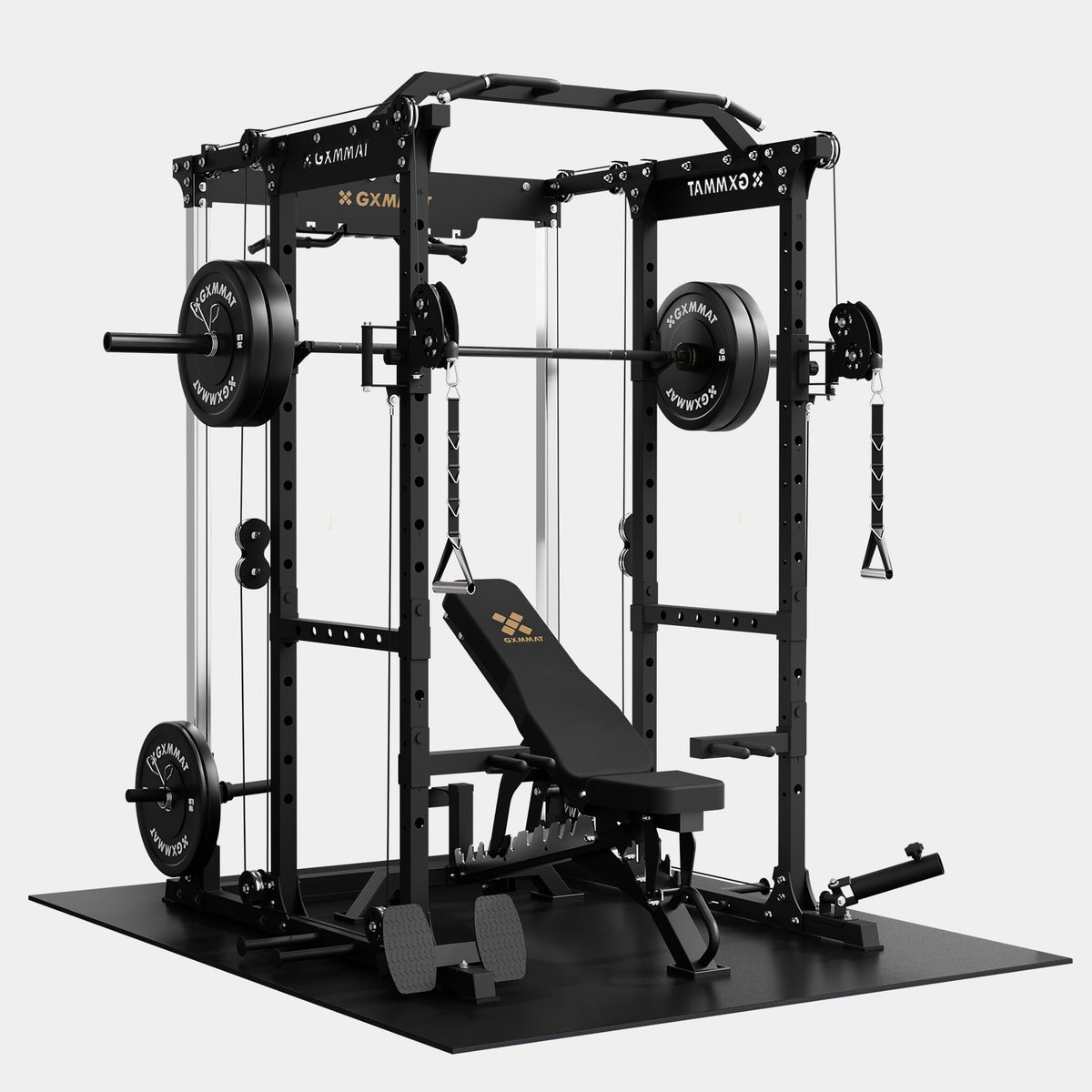

The GXMMAT X6 Power Rack measures 64.57" × 64.17" (about 5.4 × 5.3 ft) and takes up 28.77 sq ft. Add 4–5 ft in front for deadlifts, barbell rows, lunges and cable exercises, and you get a depth of about 10 ft. An adjustable bench (the GXMMAT bench is 47.8" long) slides in and out of the rack within that space.

What ceiling height do you need for a power rack?

You need to clear three things:

1. The rack itself. The X6 is 85.04" tall (7 ft 1 in). Allow at least 10–12" above it for assembly and to move the pull-up bar safely, so 8 ft (96") is the practical minimum.
2. Pull-ups. To get your chin over the bar, your head rises above it. With an 8 ft ceiling you'll have about 11" over the X6's top crossmember, enough for strict pull-ups for many people but tight. Kipping pull-ups need more room.
3. Standing overhead press. This is the one most people forget. At lockout, the bar is at about your standing reach height, and a full-size 450 mm (17.7") bumper plate sticks up about 9" above the bar.

Overhead press ceiling formula

A practical estimate: minimum ceiling ≈ (your height × 1.33) + 9". Standing reach is roughly 1.33× body height, and 9" is the radius of a full-size plate.

Your height	Approx. reach	Ceiling needed to press with full-size plates
5'4" (64")	~85"	~94" (7 ft 10 in)
5'8" (68")	~90"	~99" (8 ft 3 in)
6'0" (72")	~96"	~105" (8 ft 9 in)
6'3" (75")	~100"	~109" (9 ft 1 in)

If your ceiling is too low, press seated on an upright bench, do landmine presses (the X6 includes a landmine attachment), or use dumbbells. Everyone's proportions differ, so test your reach with a broomstick before buying.

Is a garage big enough for a home gym?

Usually, yes. A typical one-car garage is about 12 × 20 ft, which fits a rack zone (11 × 10 ft) with room left for storage or a car-free cardio corner. A two-car garage fits a full gym and still leaves space to park. Garage ceilings are commonly 8–9 ft, but check for low door tracks and the garage door opener, which often hang 12–18" below the ceiling. Place the rack outside the door's travel path. Our garage gym guide covers flooring, insulation and noise control.

Can you fit a home gym in a spare bedroom or apartment?

Yes, with some planning:

• Choose a compact rack. A squat-rack-style frame like the GXMMAT G5 combines a rear cable pulley with built-in plate storage to save floor space.
• Check the floor. US residential codes typically design living-area floors for 40 lb per sq ft of live load. Spread heavy equipment across the whole mat and place it near a load-bearing wall. Ask your landlord or a structural engineer before loading an upper floor heavily.
• Control noise. See our guide to working out in an apartment without disturbing neighbors.

How much flooring do you need?

Cover the whole working zone so plates, bench feet and your own feet are always on the same surface. Match the mat to the area:

• 6 × 8 ft mat: covers the X6's 64.6" × 64.2" base with margin on every side.
• 6 × 10 ft mat: covers the rack plus a bench or lifting area in front.
• Two mats side by side: for a full 11 × 10 ft lifting zone.

GXMMAT large exercise mats are 7 mm high-density foam with a double-sided anti-slip texture, so equipment stays put and floors stay protected. Not sure about thickness? Read how to choose the right mat thickness.

Home gym space planning checklist

1. Measure length, width and ceiling height, and note the lowest obstacle (beams, lights, door tracks).
2. Mark an 11 × 10 ft rectangle on the floor with painter's tape.
3. Check that the rack's height plus 10–12" fits under the lowest obstacle.
4. Test your overhead reach with a broomstick.
5. Plan flooring to cover the whole taped area.
6. Leave a clear walkway (at least 3 ft) to the door.

FAQ

What is the minimum ceiling height for a power rack?

For a full-size rack around 7 ft tall, plan on at least an 8 ft ceiling. That leaves 10–12" of clearance for assembly and pull-ups. Standing overhead presses with full-size plates may need 8.5–9 ft or more, depending on your height.

How much space do you need for a barbell?

An Olympic barbell is about 7.2 ft (86.6") long. Leave about 2 ft at each end for loading plates, for a total width of roughly 11 ft.

Can I put a power rack in a room with an 8 ft ceiling?

Yes, most racks around 85" tall fit under an 8 ft ceiling. You may not be able to do standing overhead presses with full-size plates. Press seated, use a landmine or use dumbbells instead.

How many square feet is a good home gym?

About 100–150 sq ft fits a power rack, barbell, bench and flooring. A mat-only workout space needs just 36–48 sq ft.

Do I need to anchor a power rack to the floor?

Check the manufacturer's manual. Wide-based 6-post racks are designed to be stable freestanding on a level floor, especially with weight on the storage pegs. Anchoring adds stability for kipping or band work.

Written by Yuvien Royer for GXMMAT. Measurements for GXMMAT products come from the official product specifications.
